Vasoguide

Guiding Catheter

Vasoguide guiding catheter combines superior torqueability and back-up support
due to its braided structure and polymer material. Designed to deliver more precise
therapy to meet patients' needs in simple as well as complex cases.

Features and benefits:

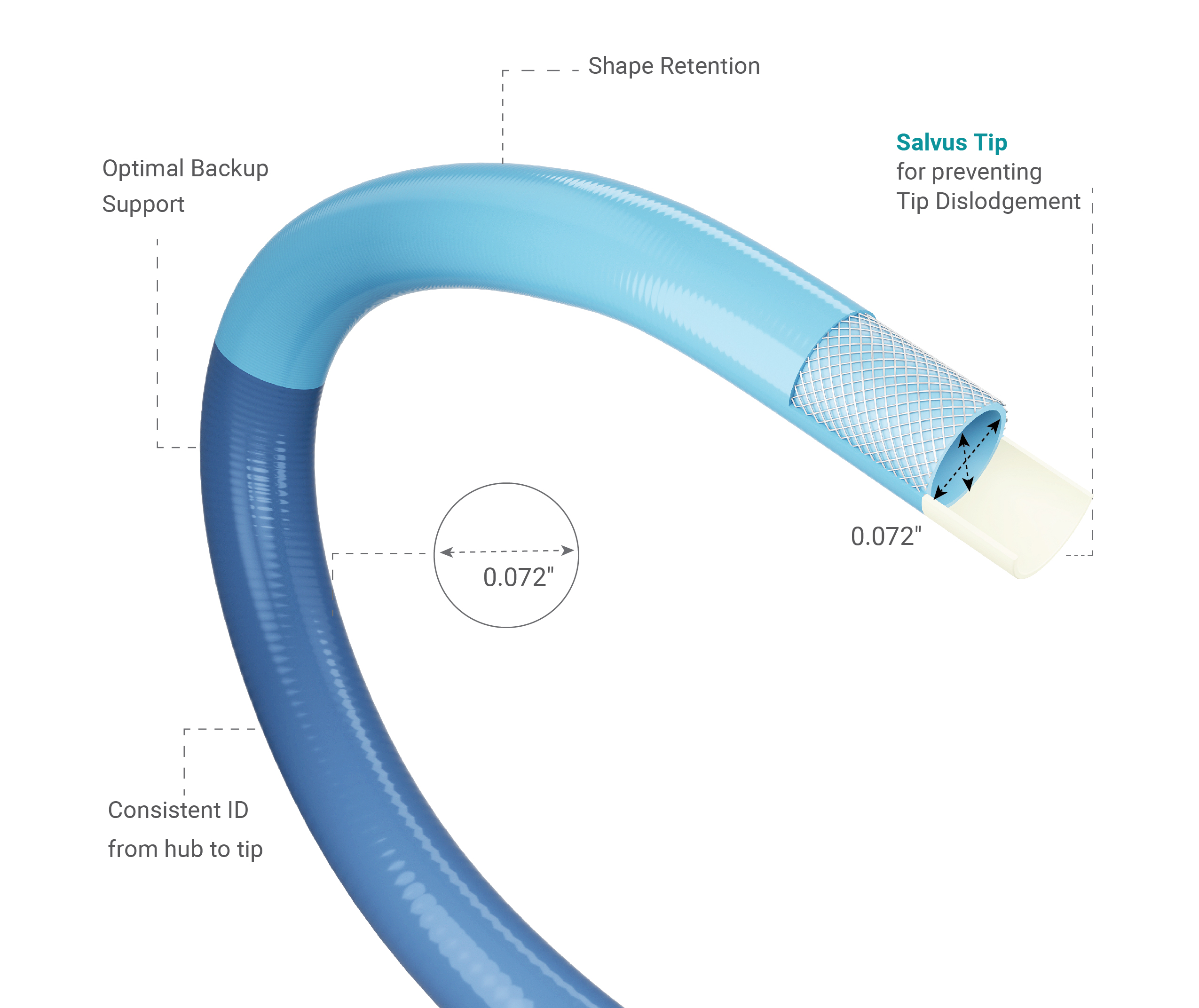

• Salvus tip for preventing tip dislodgement
  • – Increases visibility and promotes safe & atraumatic delivery
  • – Proprietary technology to prevent tip dislogment
• Extra thin PTFE liner
  • – Remain stiffer with excellent flexibility
  • – 1:1 torque transmission
• Intact Braiding for optimal back-up support
  • – Polymer material with braided design provides excellent kink resistance
  • – Controlled back-up support and torque response
• Large Lumen design & easy device delivery
  • – Provides optimal flow rate and easy device delivery
  • – Provides smooth and compatible pathway for multiple and various devices
  • – Flat wire braided structure and extra thin lines for a bigger lumen
• Multi-segment design
  • – Co-axial segments provide easier entrance of devices into the coronary artery
  • – Ensures 1:1 torque transmission with less whipping

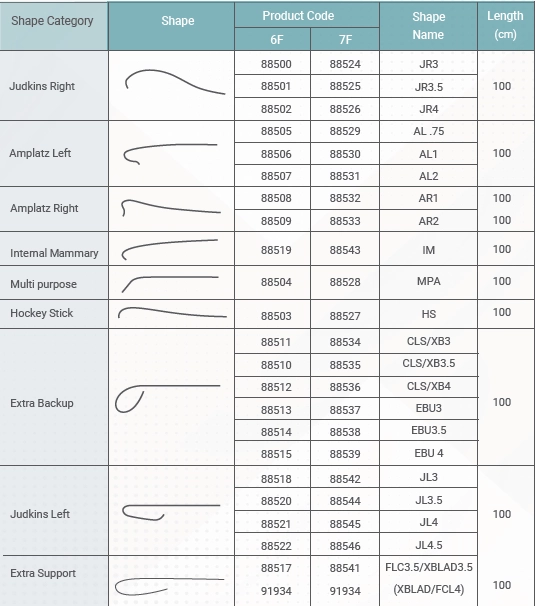

Ordering Information
