HEALTH PICC

PERIPHERALLY INSERTED CENTRAL CATHETERS

Intended Use

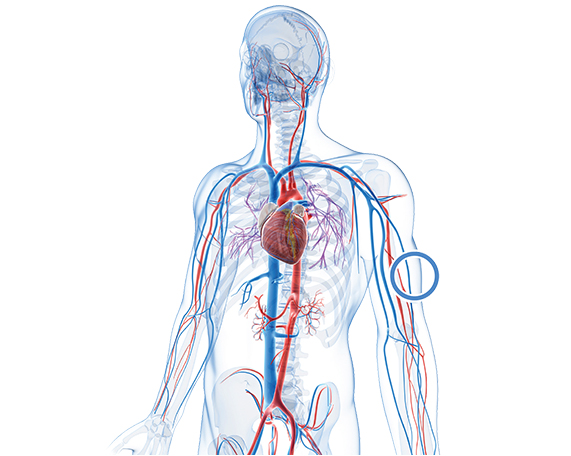

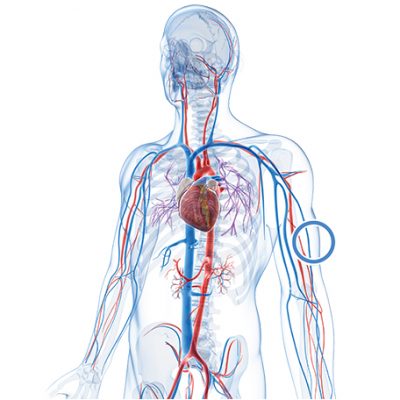

HealthPICC identifies a range of catheters suitable for central venous systems access through arm’s deep veins. It is recommended for short and long therapies, allowing the venous infusion of liquids, drugs, nutritional therapies and blood samples withdrawal.
All HealthPICC catheters are suitable for high-flow rate injection of contrast media (“Power injection”).

A wide range of POWER CATHETERS and components aligned to the most recent clinical procedures for an easy and safe percutaneous access

Features

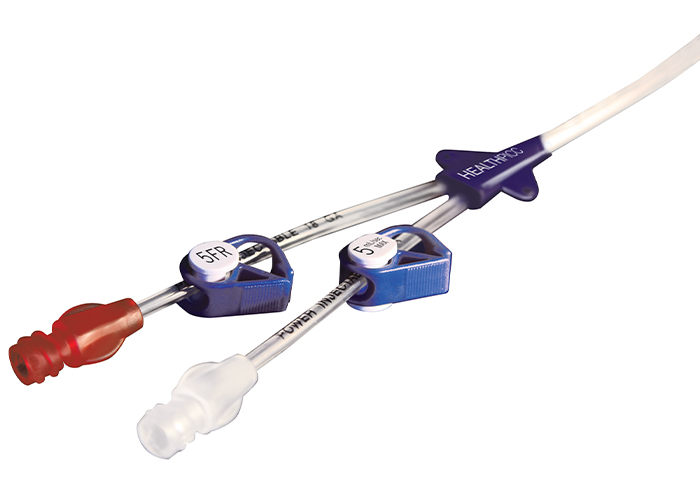

Power Injectable Catheters

All HEALTHPICC catheter are made of Polyurethane and suitable for high-pressure injections (max flow rate as reported in the table below)

Kit contents

HEALTHPICC catheter marked every centimetre
Stylet
Stylet holder and T-connector
21GA echogenic needle
Nitinol straight guidewire
Dilator/Introducer
Needle Free Connector
Grip-Lok®2 suture-less adhesive
Safety scalpel
Paper ruler
Instructions for use
Patient implant card

ECG-compatible for catheter’s tip correct placement

Reverse tapered

For an easy and safe implant procedure reducing bleeding risk. Reverse tapering provides excellent kinking resistance too

Micro – Introduction Kit

REF	Description	Introducer Needle	Dilator / Introducer	Guidewire
201.60.51.03	introducer Set 3FR short	21GA x 40 mm	4FR x 50 mm	0.45 x 400 mm
201.60.51.04	introducer Set 4FR short	21GA x 40 mm	4.5FR x 50 mm	0.45 x 400 mm
201.60.51.14	introducer Set 4FR	21GA x 70 mm	4.5FR x 70 mm	0.45 x 400 mm
201.60.51.15	introducer Set 5FR	21GA x 70 mm	5.5FR x 70 mm	0.45 x 400 mm
201.60.51.06	introducer Set 6FR	21GA x 70 mm	6FR x 70 mm	0.45 x 400 mm

References

CODE	Lumen	Catheter diameter (FR)	Catheter material	Catheter length (mm)	Gravity flow rate^a (ml/min)	Maximum flow rate^b (ml/s)	Revers tapering	Depth Marks
201.60.10.13	Single	3	Polyurethane	450	8	2	Yes	Yes
201.60.10.14	Single	4	Polyurethane	550	22	5	Yes	Yes
201.60.10.15	Single	5	Polyurethane	550	39	7	Yes	Yes
201.60.10.24	Double	4	Polyurethane	450	4	2	Yes	Yes
201.60.10.25	Single	5	Polyurethane	500	10	5	Yes	Yes
201.60.10.36	Triple	6	Polyurethane	550	13 (Power lumen) 5 (other lumens)	5^c	Yes	Yes

(a) Gravity infusion from a height difference of 1m.
(b) Maximum flow rate with limiting pressure of 300 psi, medium viscosity of 12cP.
(c) Only one lumen is Power injectable for the 6FR catheter.
